| Parameter Name | Value |
|---|---|

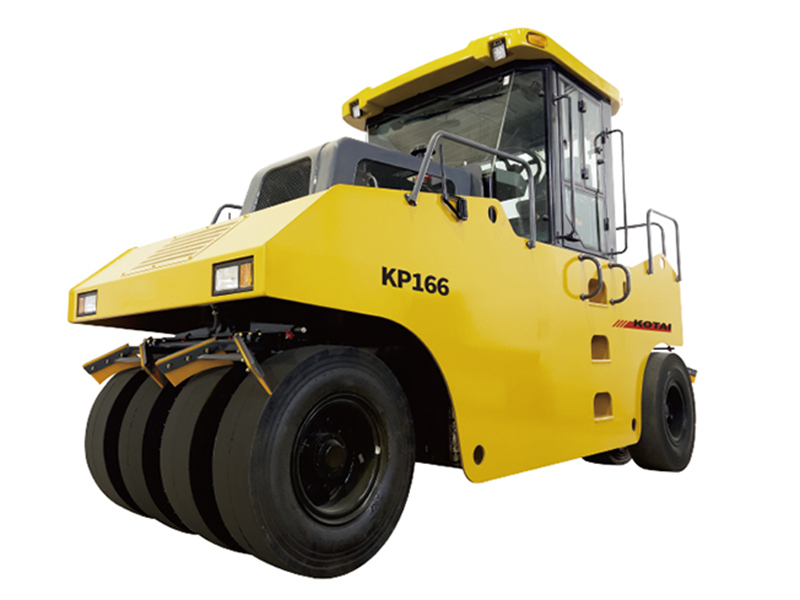

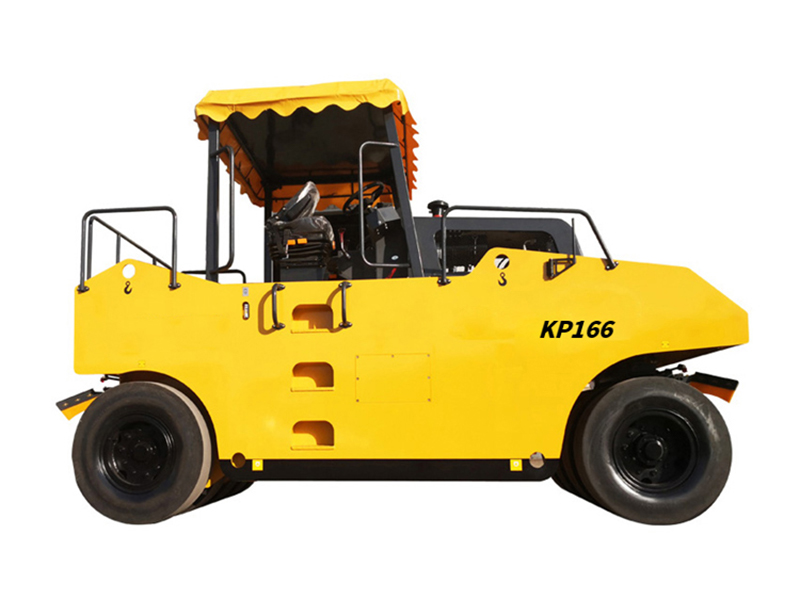

| Product Model | KP166 |
| Maximum Operating Weight | 16000 kg |
| Ground Pressure | 200-400 kPa |
| Compaction Width | 2270 mm |
| Gradeability | 30% |
| Speed Ⅰ | 0-7 km/h |
| Speed Ⅱ | 0-15 km/h |
| Turning Radius | 7500 mm |
| Tire Specification (Smooth Surface) | 1100-20 |
| Tire Counterweight (Front/Rear) | 4/5 |
| Engine Brand | Weichai |
| Emission Standard | China Stage II/Tier 2 |
| Engine Power | 105 kW |
| Overall Dimensions | 5200×2270×3350 mm |
