| Item | Specification |
|---|---|
| Total weight (kg) | 13000 |
| Engine rated power/speed (kW/r/min) | 93/2000 |
| Fuel consumption of the engine (g/(kW·h)) | ≤246 |
| Engine max torque (N·m) | 526 |
| Item | Specification (mm) |
|---|---|
| Overall length | 5506 |
| Overall width | 3135 |
| Transport height | 3230 |

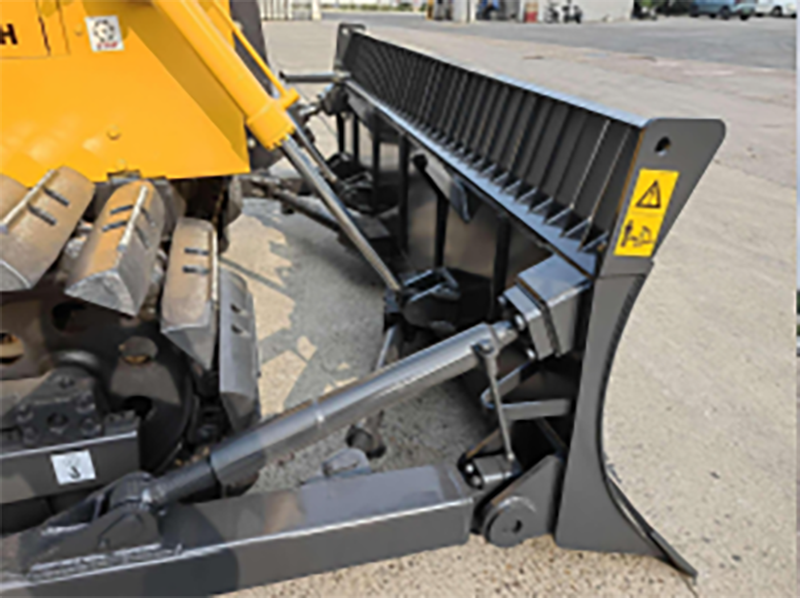

| Bulldozer shovel width | 3135 |
| Bulldozer shovel height | 970 |
| Caterpillar track board width | 500 |
| Item | Specification |
|---|---|
| Forward 1-4 gear (km/h) | 2.6~10.6 |
| Reverse 1-2 gear (km/h) | 3.8~7.0 |
| Land pressure (kPa) | 51 |
| Item | Specification |
|---|---|
| Blade max lifting height (mm) | 894 |
| Blade max digging depth (mm) | 400 |
| Towing equipment/Ripper (optional) | Fixed/three-toothed |
